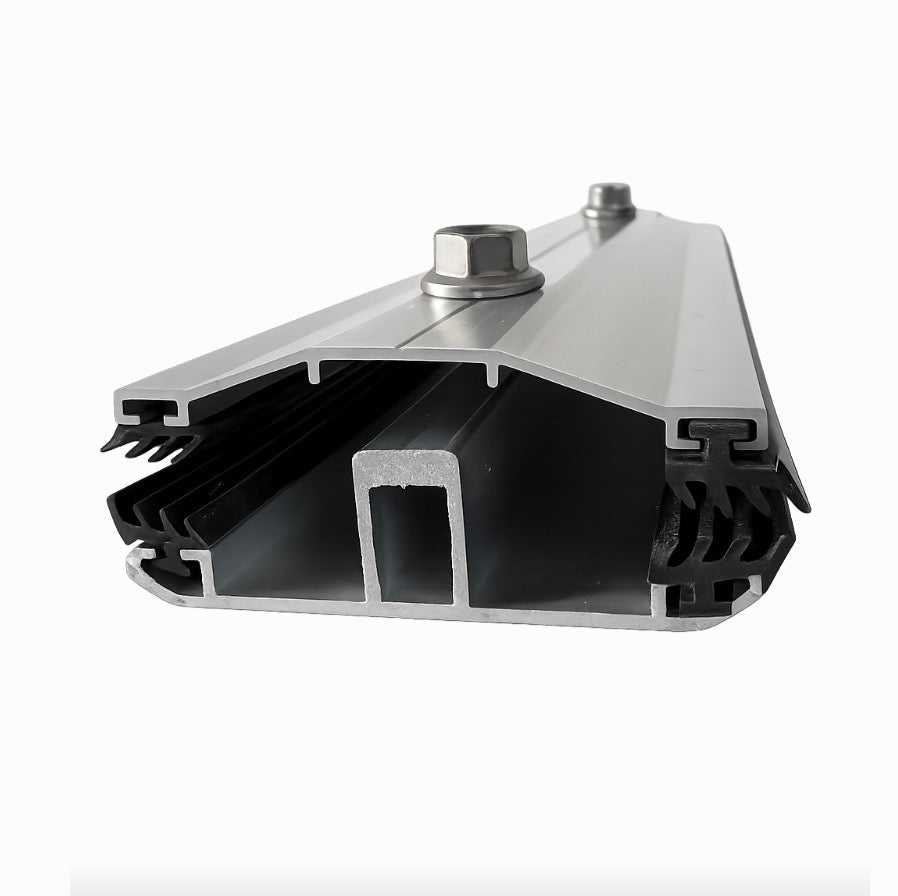

Aluminium H Joiner 58mm 2-Parts Polycarbonate Glazing Bar

Excelite two parts Aluminium H joiners provide a practical solution for connecting clear polycarbonate roofing and polycarbonate twin-wall sheets. The Aluminium two piece H-Bar system makes flat polycarbonate roofing sheets handling and installation easy and flexible.

2 Parts Aluminium Joiner Specification:

• Width: 58mm
• Length: 6m (Can cut to length)

• Come with 4 Rubbers

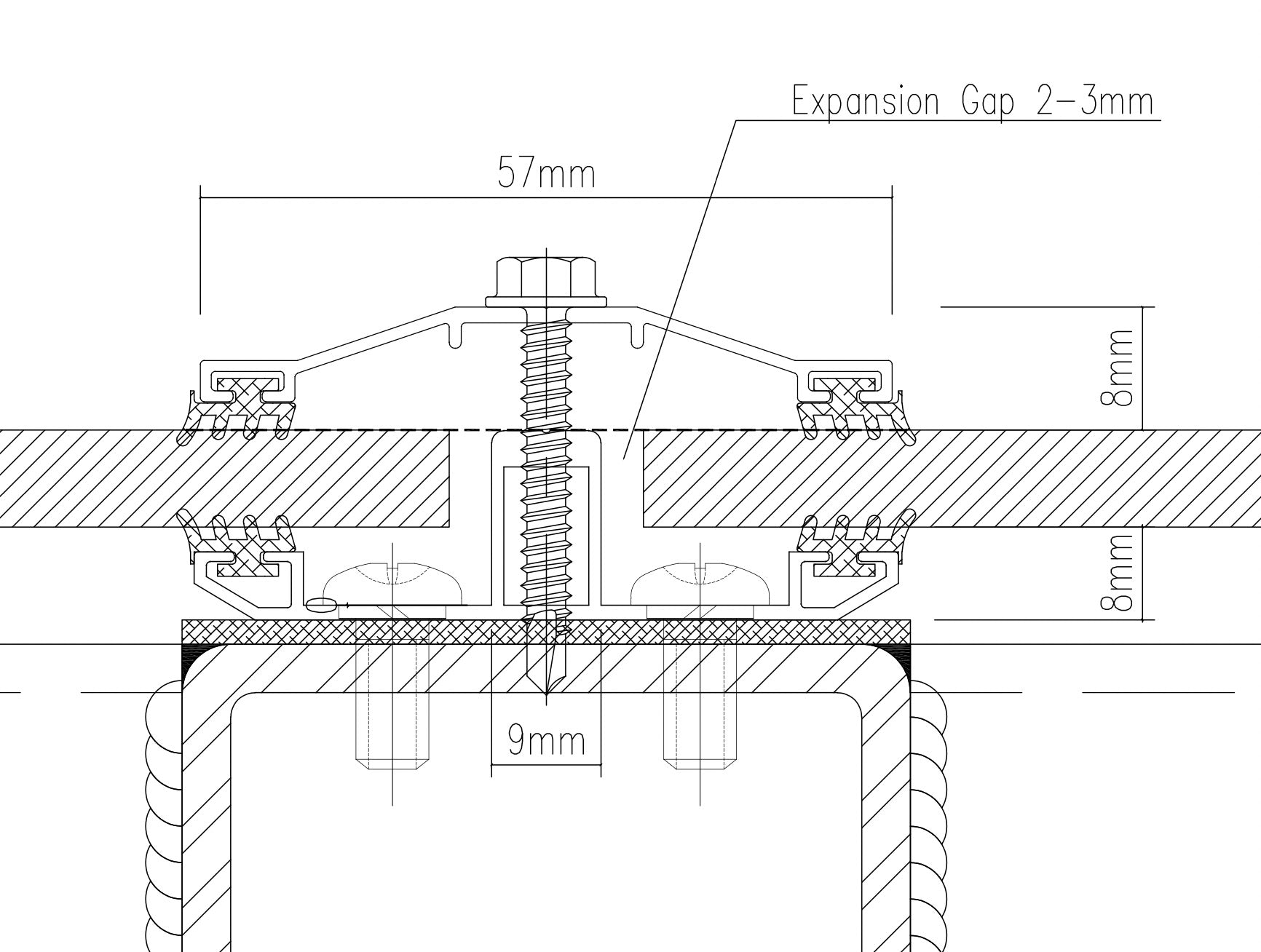

• Middle Gap: 9mm(Leave 3mm expansion gap in each side)
• Suitable for thickness from 2mm up to 16mm polycarbonate sheets
• Anodised finish

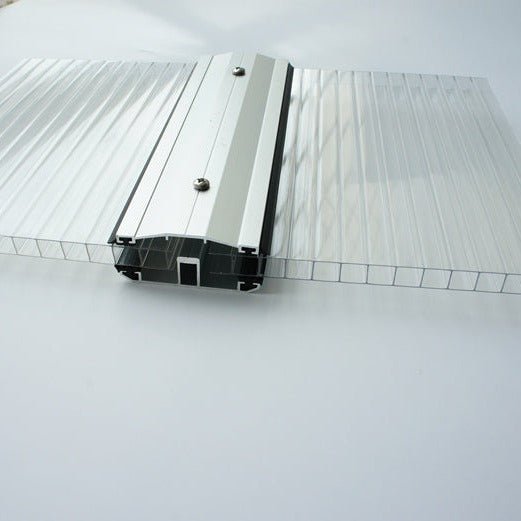

Aluminium Glazing Bars can also use for Twin wall polycarbonate roofing sheets

The flat polycarbonate roofing sheets and twin wall polycarbonate sheets simply place on the H-Bar ready for fixing to the existing structure. The glazing bar system allows for thermal expansion and avoid penetrations through the sheet.

Features and benefit of Excelite Aluminium H joiner

• 100% Water proof
• Easy to install
• Roofing sheets expand freely
• Suitable for 2mm-16mm thickness polycarbonate Roofing sheet
• Can install on rafters or battens

How does Excelite Aluminium H joiners work?

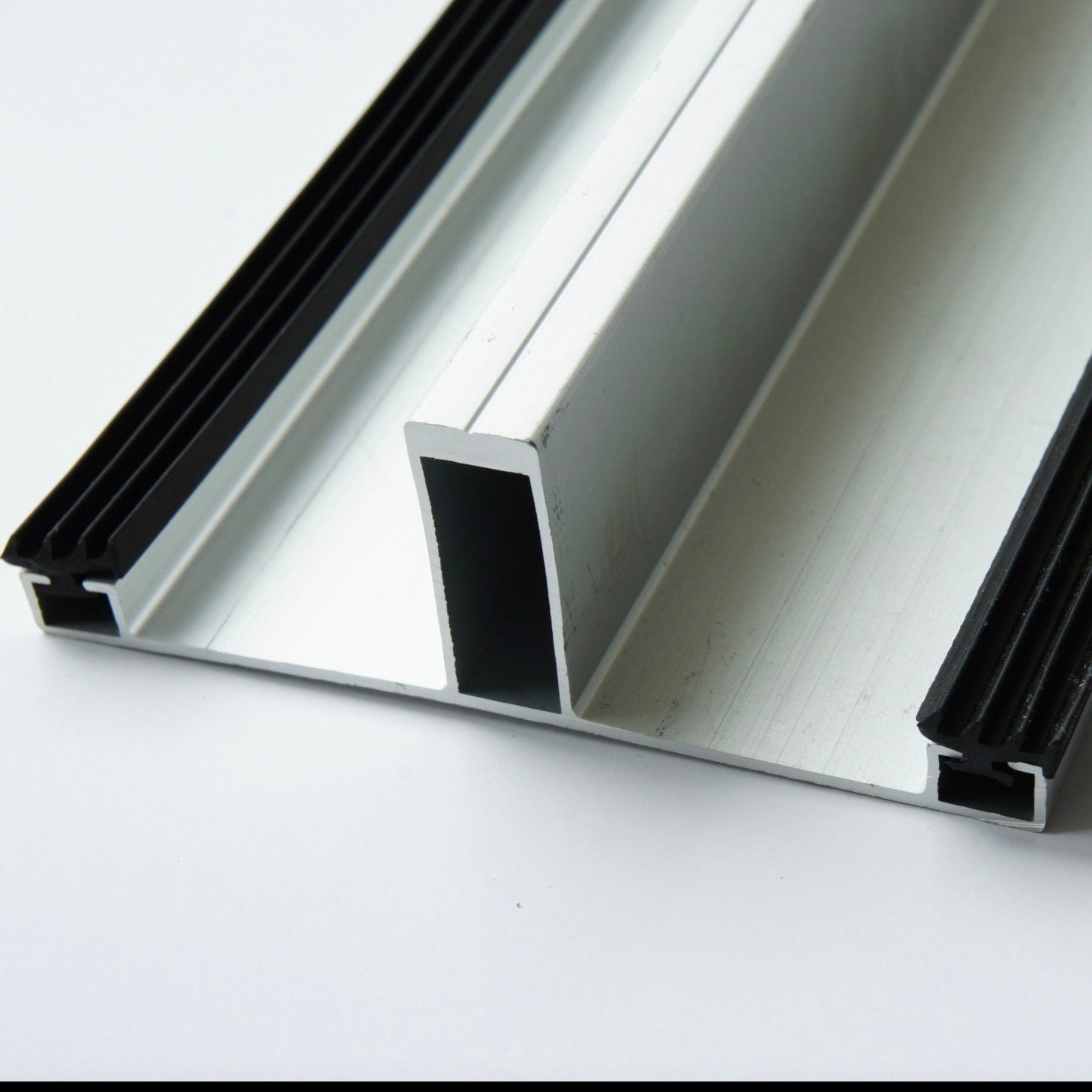

• Slide the rubber gaskets into the aluminium H joiner. Each length of aluminium H joiner requires four rubber strips: left, right, top, and bottom. Ensure the rubber lips face outward.

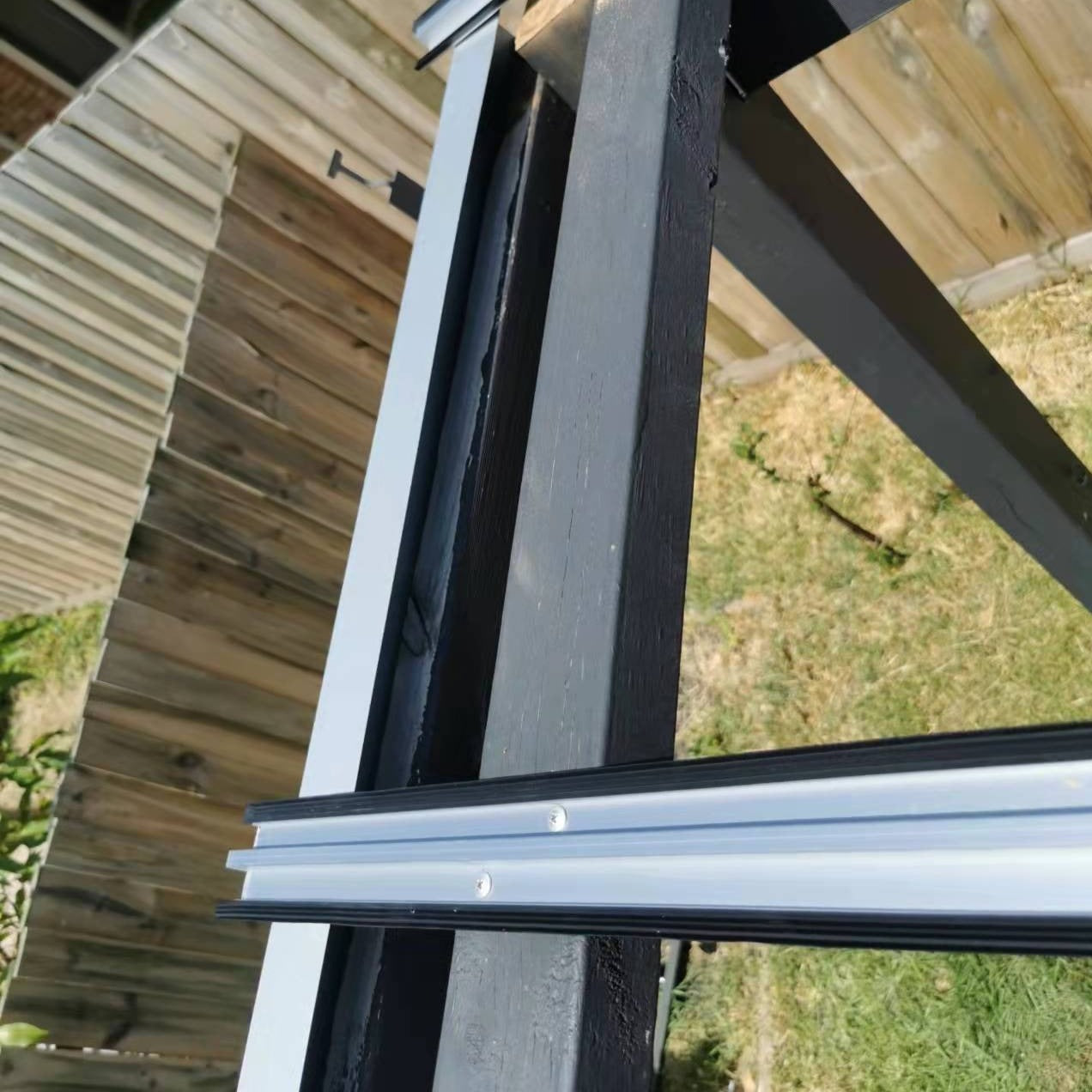

• Fix the base section of the aluminium H joiner directly onto the roof purlins or rafters.
• Position the polycarbonate sheets and leave an expansion gap of approximately 3mm on each side.

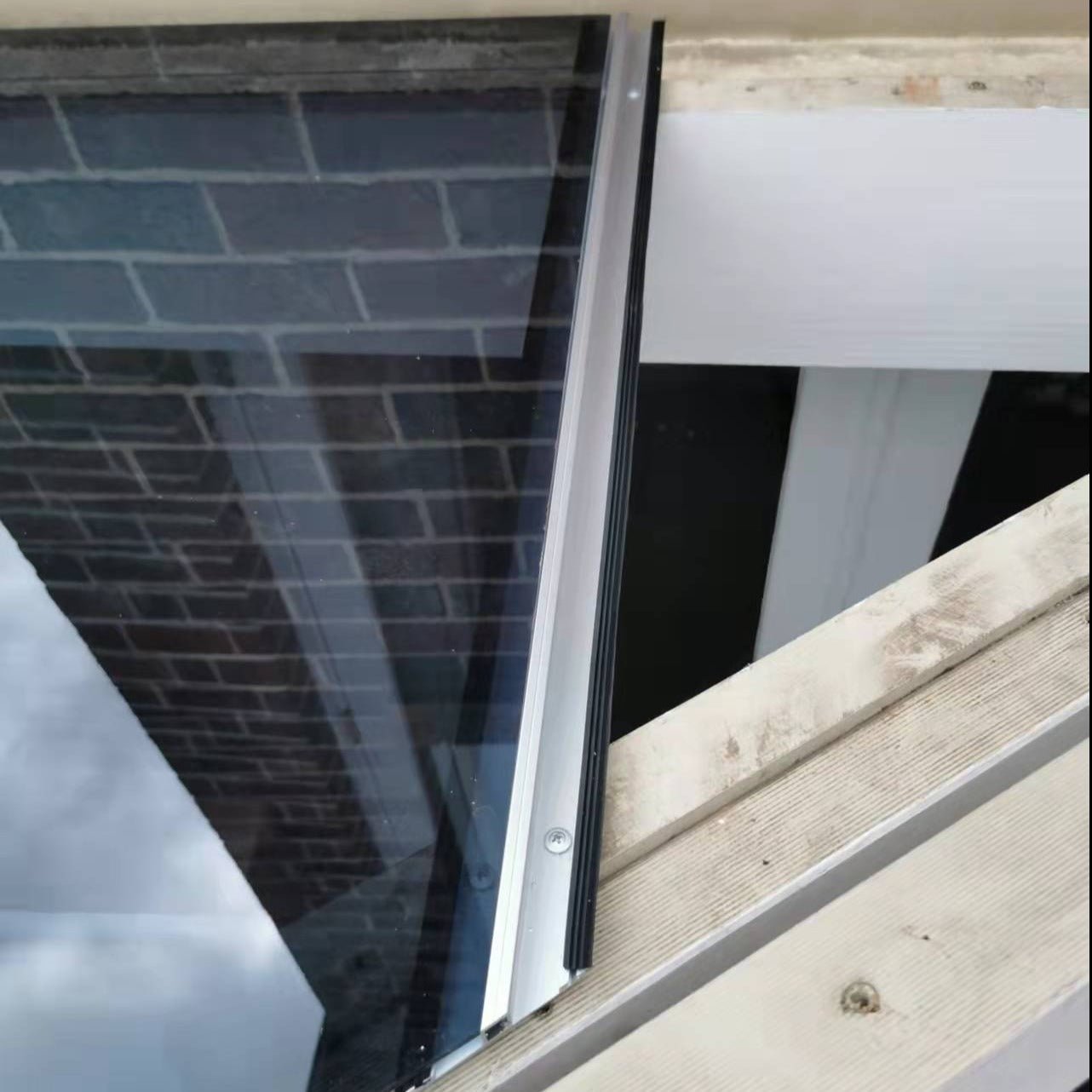

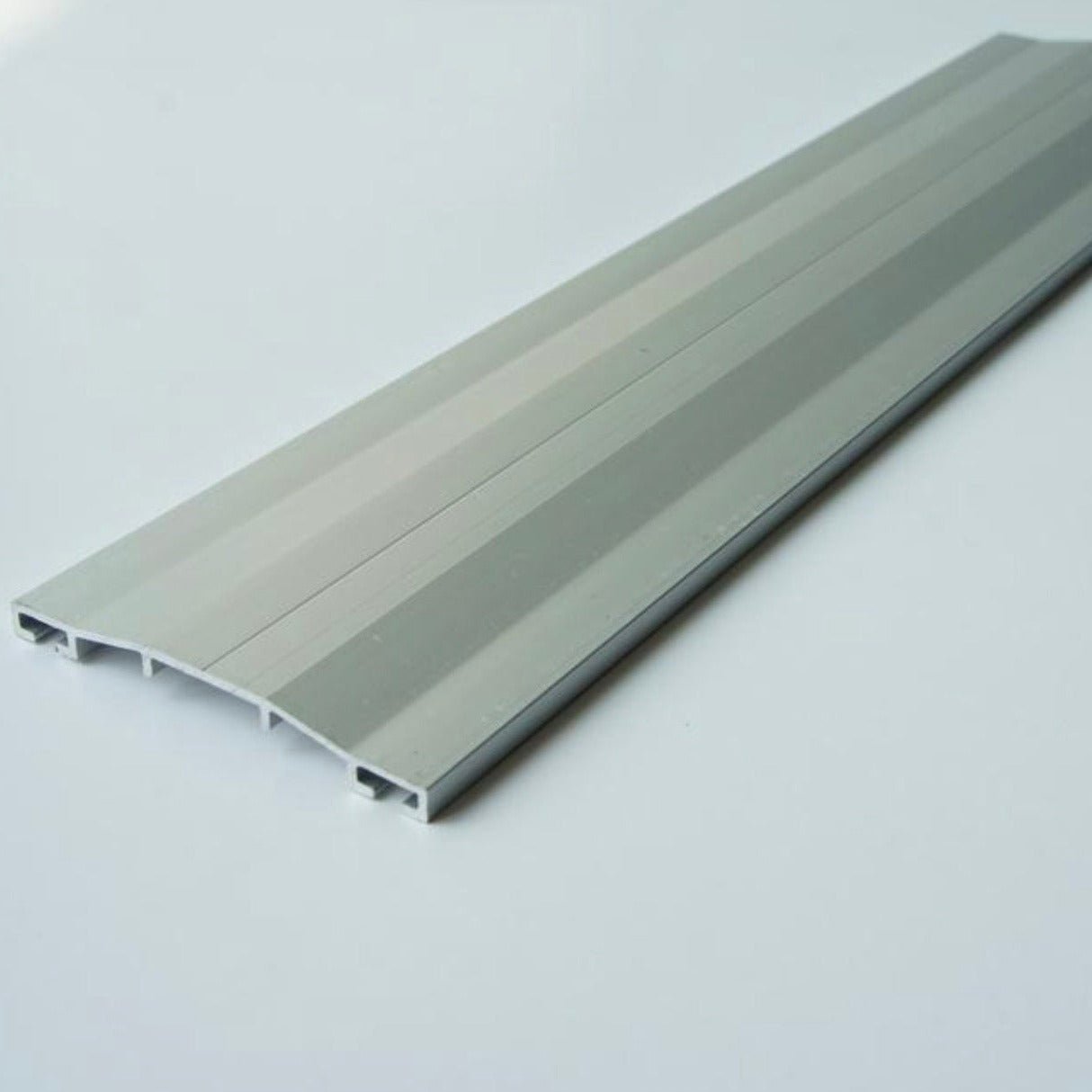

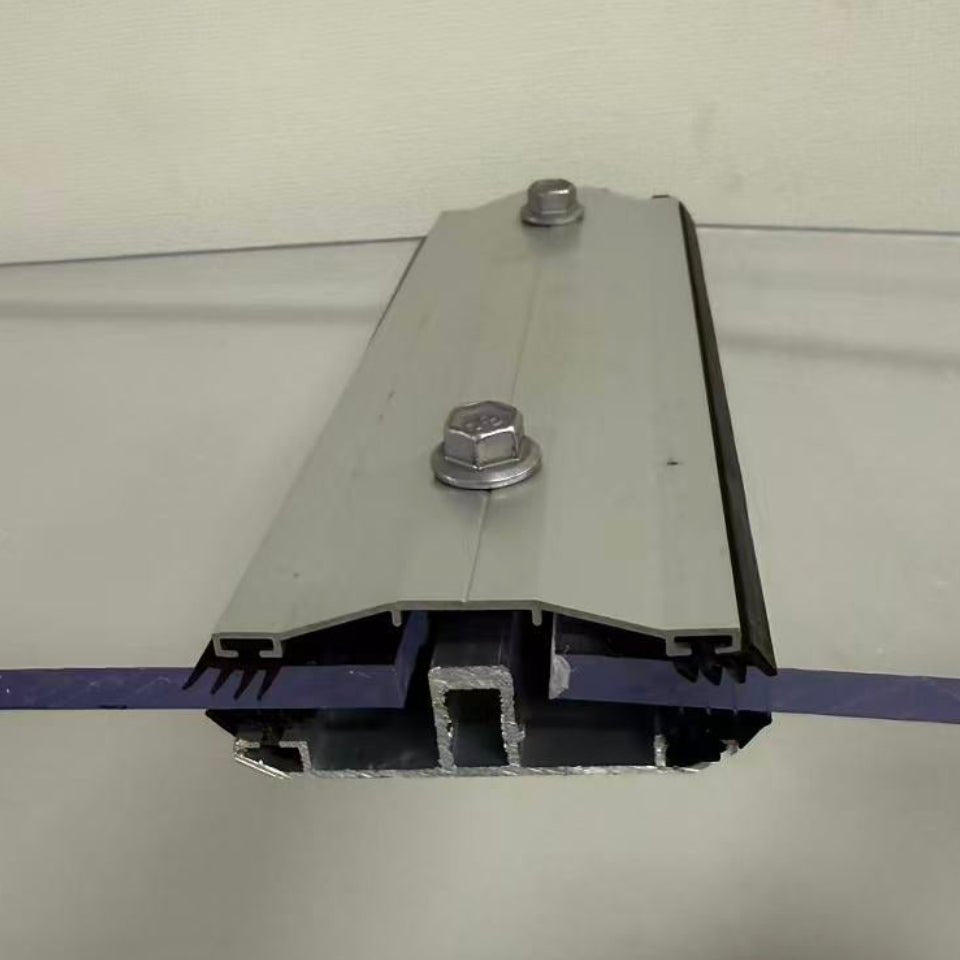

• Clip the top cap onto the base section and secure it with screws, ensuring the polycarbonate sheets remain centred and the expansion gaps are maintained.

Applications for Aluminium Connectors:

• Suitable for joining and securing Solid Polycarbonate Sheets, Twinwall Polycarbonate Sheets, Multiwall Polycarbonate Sheets, Acrylic Sheets, and Glass Panels.

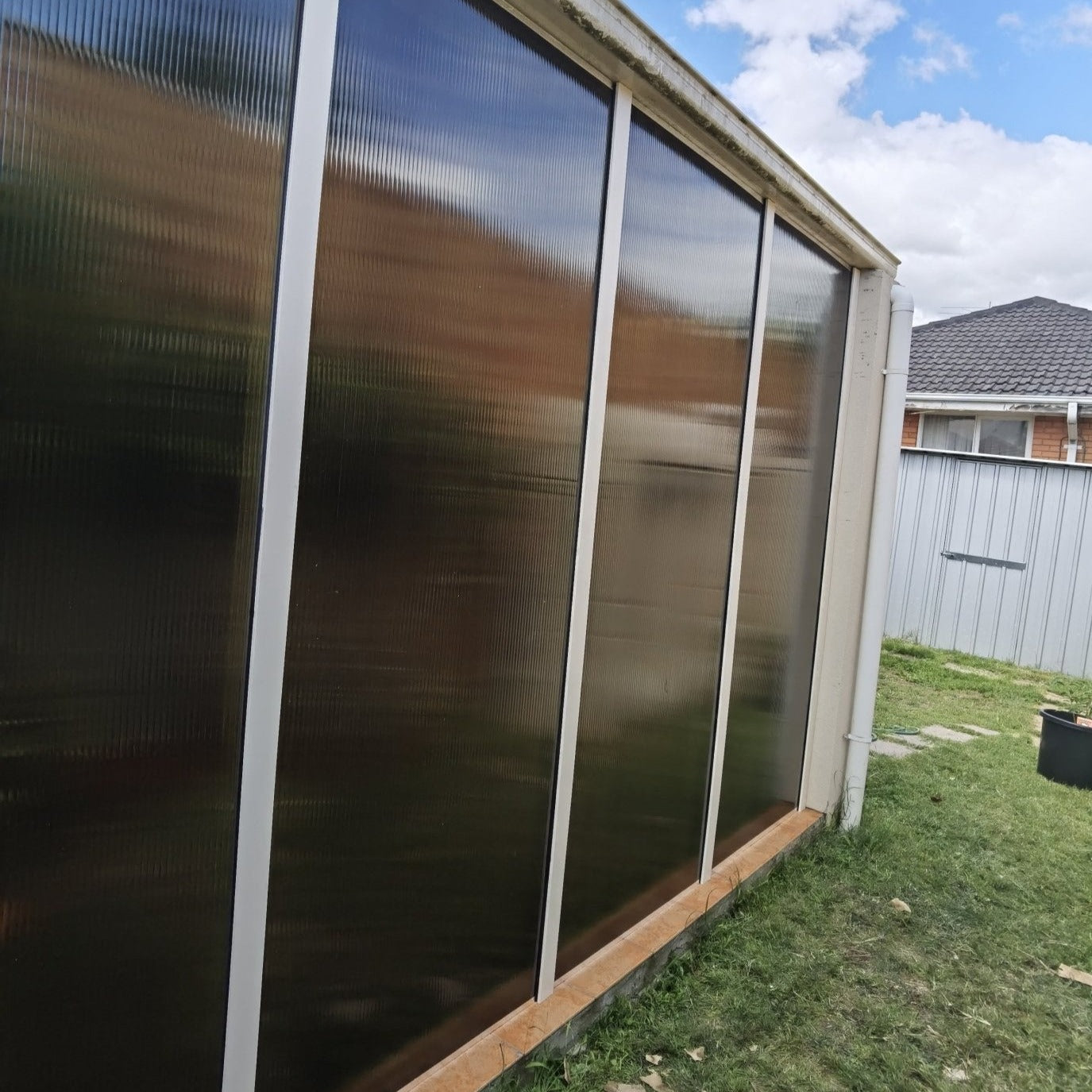

• Ideal for both roofing and vertical glazing applications, including walls, facades, cladding, partitions, and enclosures.
• Compatible with panel thicknesses ranging from 2mm to 16mm.
• Suitable for indoor and outdoor installations.

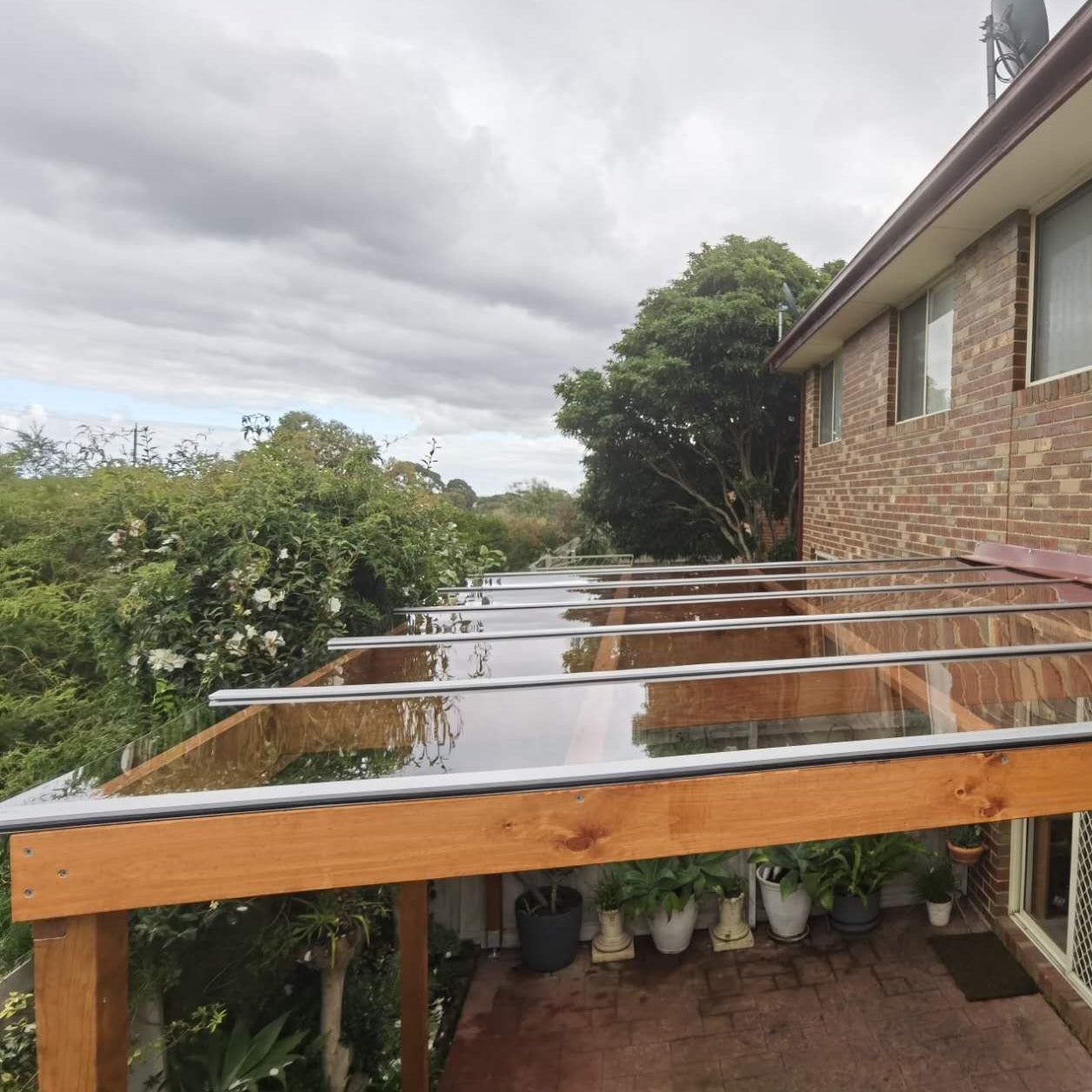

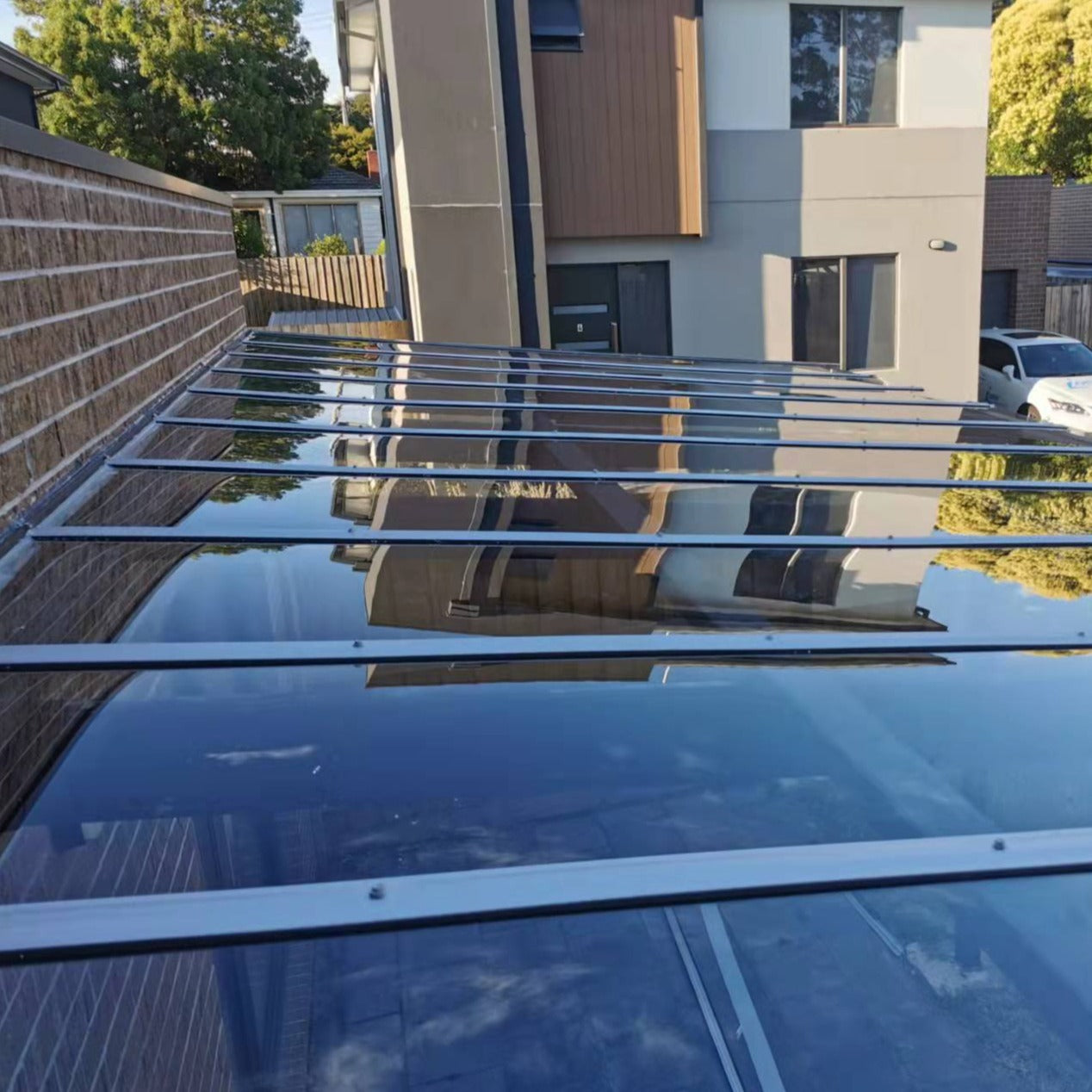

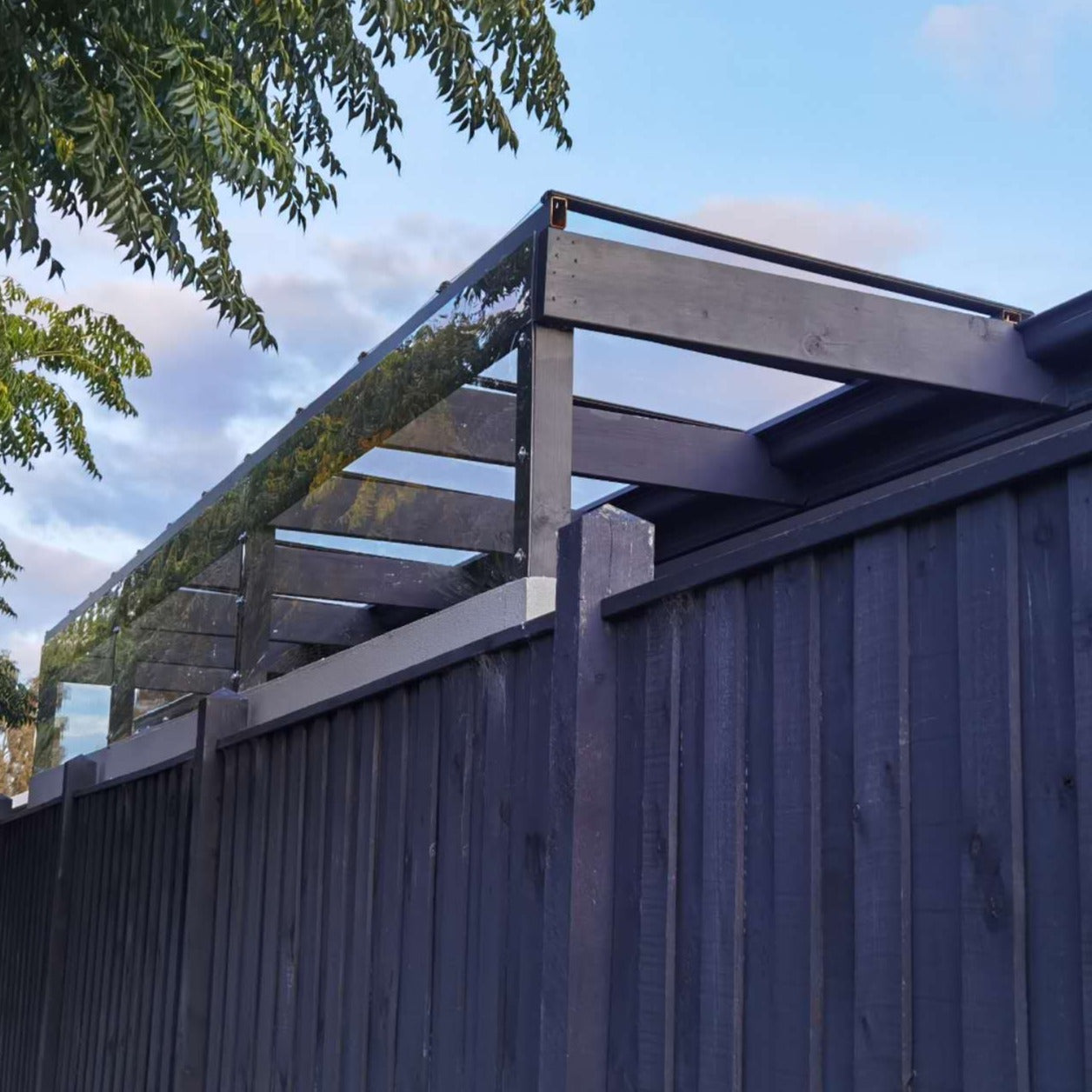

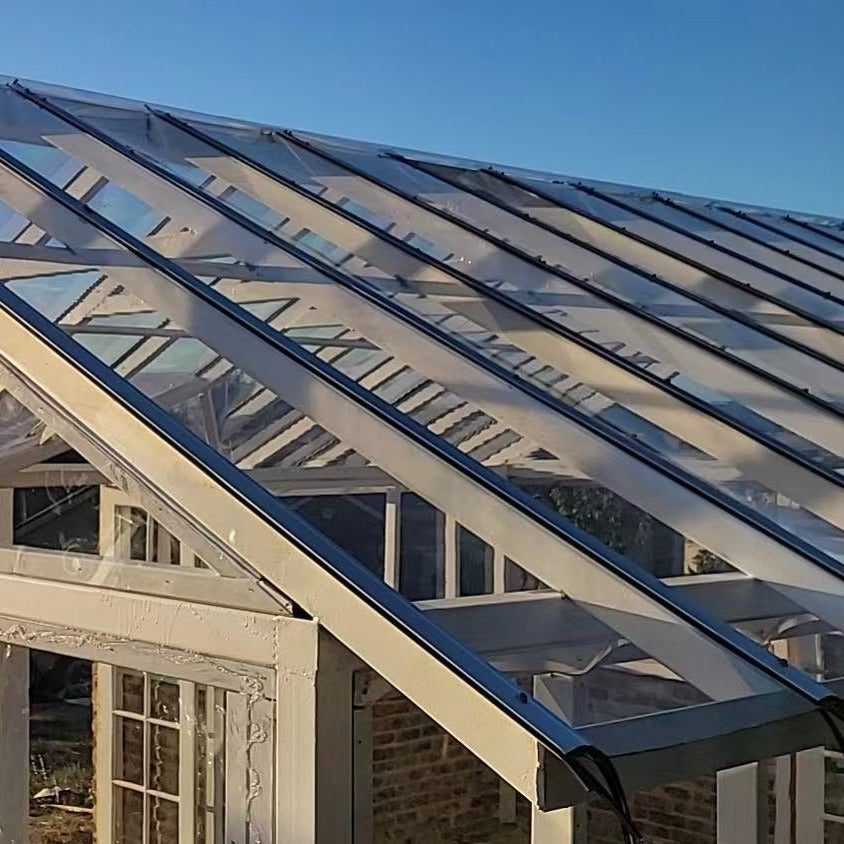

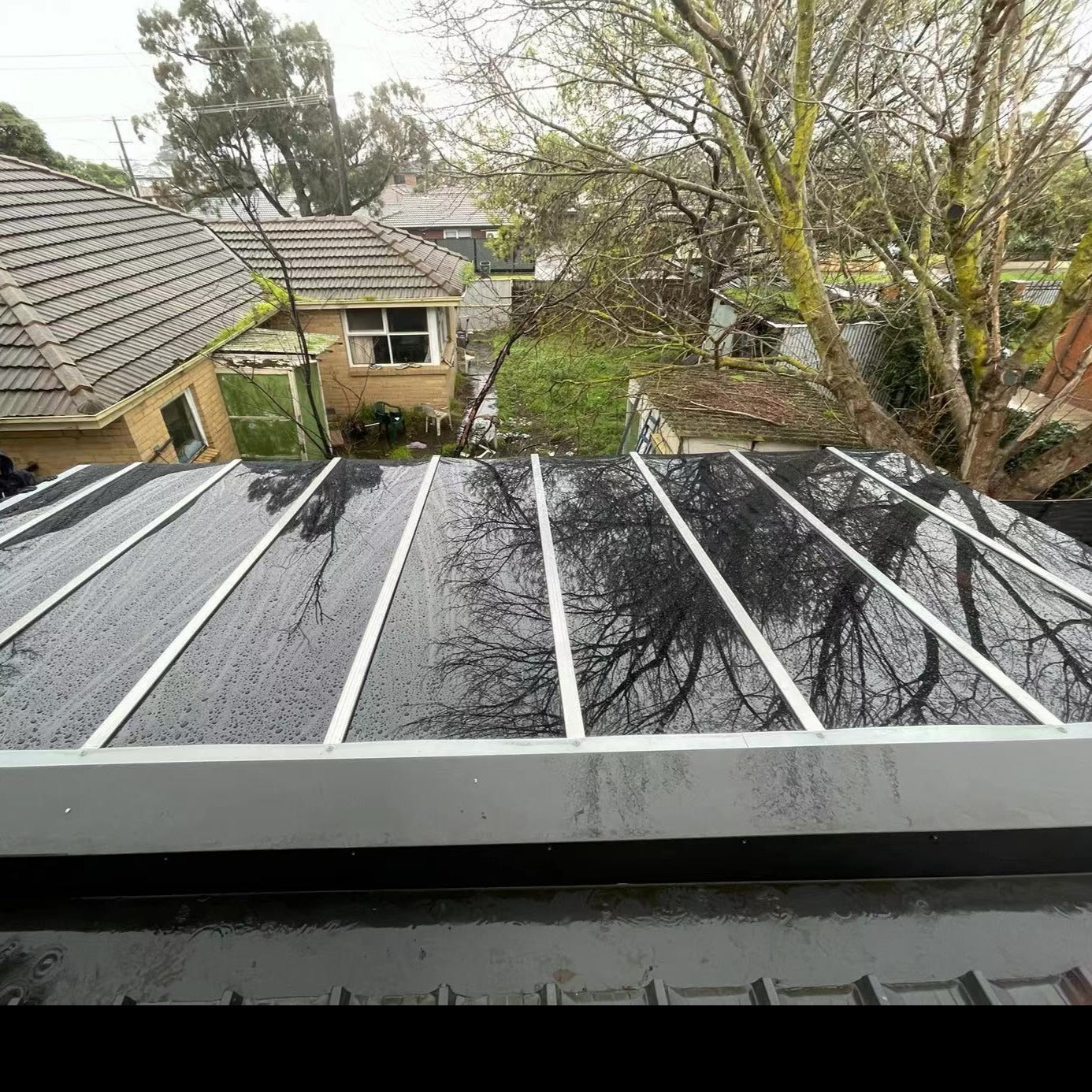

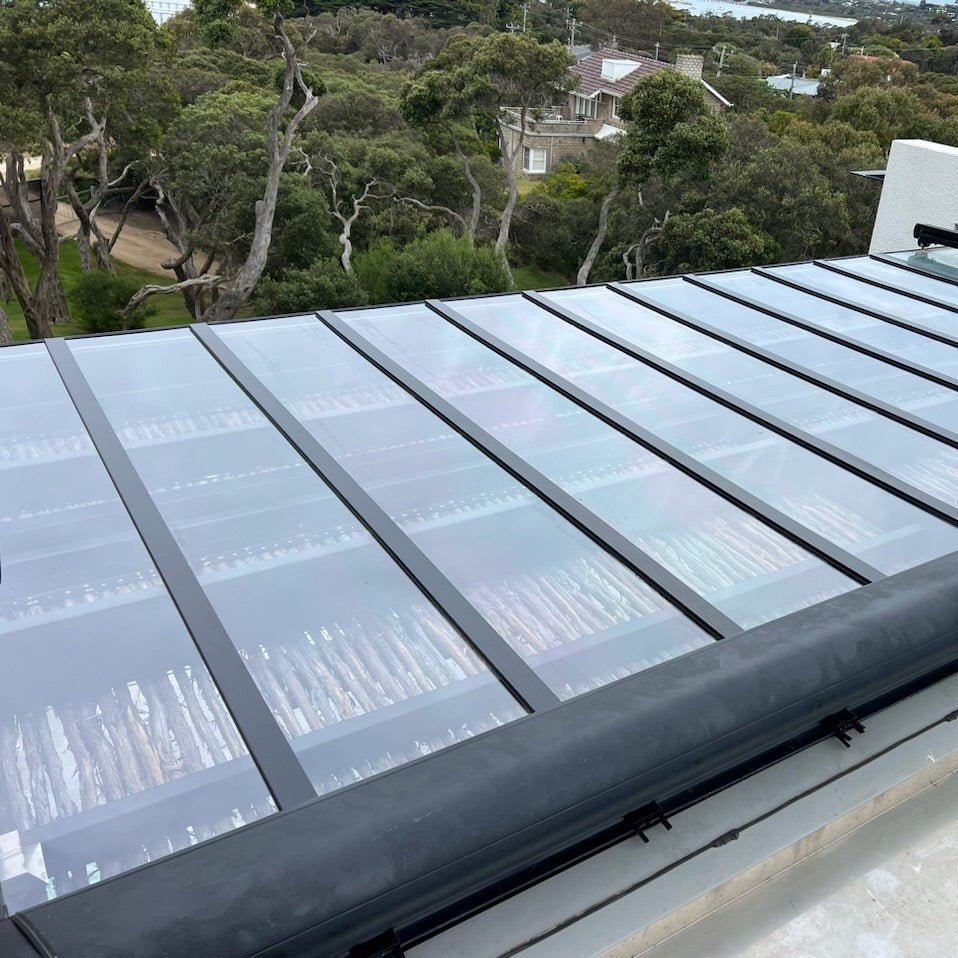

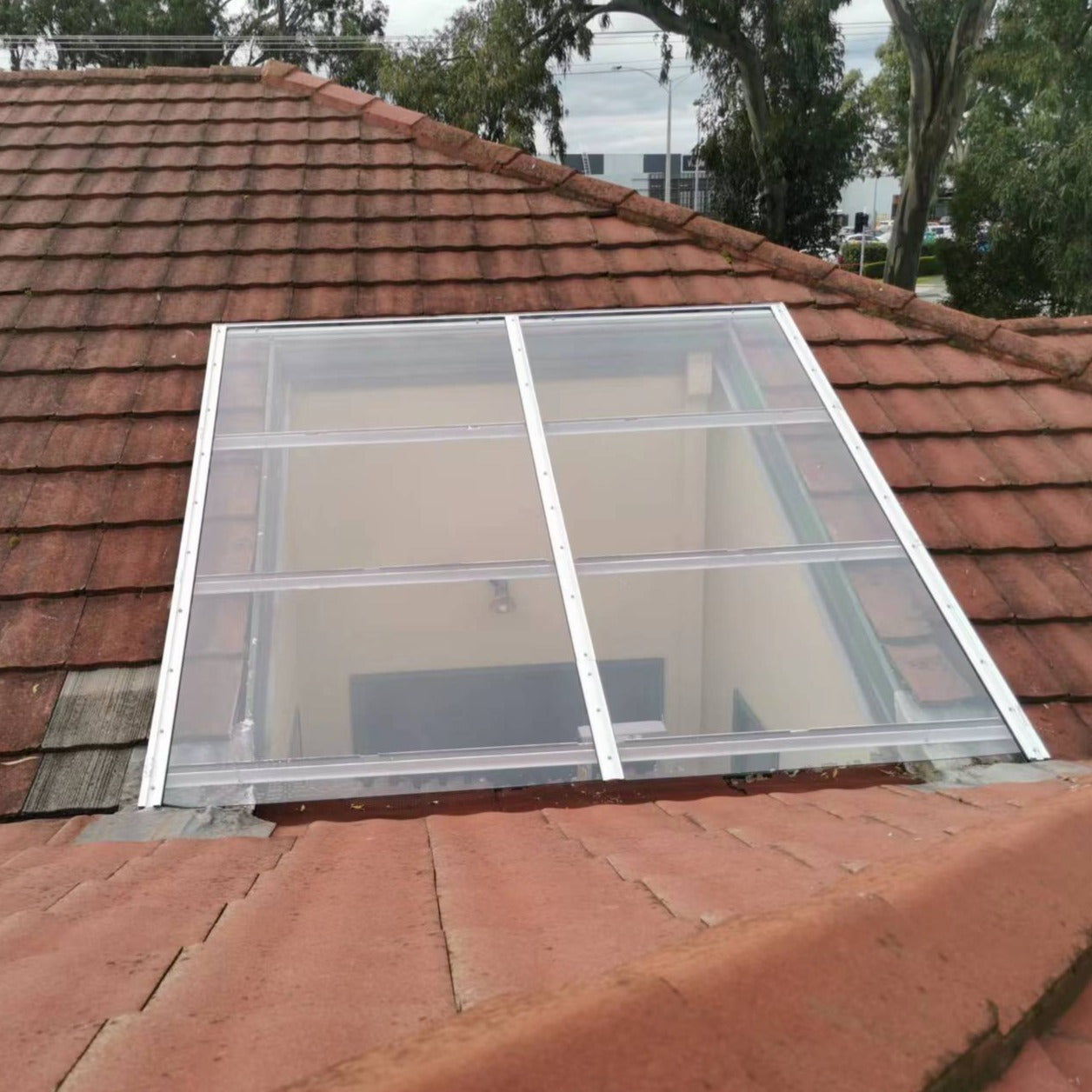

• Commonly used in patios, pergolas, verandas, carports, sunrooms, skylights, greenhouses, pool enclosures, and architectural glazing projects.
• Provides a strong, weather-resistant connection system for residential, commercial, and industrial applications.

Difference Between Traditional One-Piece Aluminium H Bar and Excelite Two-Piece Aluminium H Joiner

1. Sheet Thickness Compatibility

Traditional One-Piece Aluminium H Bar

• Designed for a specific sheet thickness only.

• Different profiles are required for different panel thicknesses.

Excelite Two-Piece Aluminium H Joiner

• Suitable for a wide range of sheet thicknesses from 2mm to 16mm.

• One joiner system can accommodate multiple panel types and thicknesses.

2. Ease of Installation

Traditional One-Piece Aluminium H Bar

• Installation can be time-consuming and difficult.
• Designed for Twinwall Polycarbonate sheet only
• Panels must be slid into the channel along the full length of the joiner, which can be challenging on larger roofing projects.
• Limited tolerance for panel size variations.

Excelite Two-Piece Aluminium H Joiner

• Fast and easy to install.

• Panels are simply laid onto the base section, and the top cap is fixed over the sheets.

• Allows greater flexibility if panels are slightly oversized or undersized.

• Ideal for both Twinwall and Solid Flat polycarbonate roofing sheets.

3. Waterproof Performance

Traditional One-Piece Aluminium H Bar

• Achieving a watertight seal can be difficult. If the fit is too tight, panels are difficult to slide into place. If the fit is too loose, water penetration may occur.

Excelite Two-Piece Aluminium H Joiner

• Designed with rubber gaskets to create a secure weatherproof seal. No silicone needed.

• Can be firmly fixed to the supporting structure without affecting installation.

• Provides excellent waterproof performance and long-term reliability.

4. Price

Traditional One-Piece Aluminium H Bar

• Similar material cost to a two-piece system.

Excelite Two-Piece Aluminium H Joiner

• Comparable in price to traditional one-piece H bars.

• Offers significantly easier installation, better sealing performance, and greater versatility for virtually the same cost.

Why Choose Excelite Two-Piece Aluminium H Joiners?

✔ Suitable for 2mm–16mm sheet thicknesses
✔ Faster and easier installation
✔ Excellent waterproof performance
✔ Greater tolerance for panel size variations
✔  Aluminium H Joiners are suitable for both roofing and vertical glazing applications such as walls, screens, facades, and partitions.

Can I install polycarbonate roofing without H joiners?

Yes, polycarbonate roofing can be installed without Aluminium H Joiners, but it depends on the type of roofing system and the level of weatherproofing and appearance you want to achieve.

You can overlap corrugated polycarbonate sheets directly and fix them to the supporting structure without using H Joiners. However, this method is generally limited to corrugated roofing profiles.

For solid polycarbonate sheets, twinwall polycarbonate sheets, and multiwall polycarbonate sheets, Aluminium H Joiners are highly recommended. They provide:

• A neat and professional finish.
• Secure sheet fixing and support.
• Better waterproofing and weather resistance.
• Accommodation for thermal expansion and contraction.
• Improved wind resistance and long-term durability.

Without H Joiners, it can be difficult to create a strong, watertight connection between adjacent sheets. This may increase the risk of leaks, movement, or premature failure, especially in outdoor applications such as pergolas, patios, verandas, and skylights.
