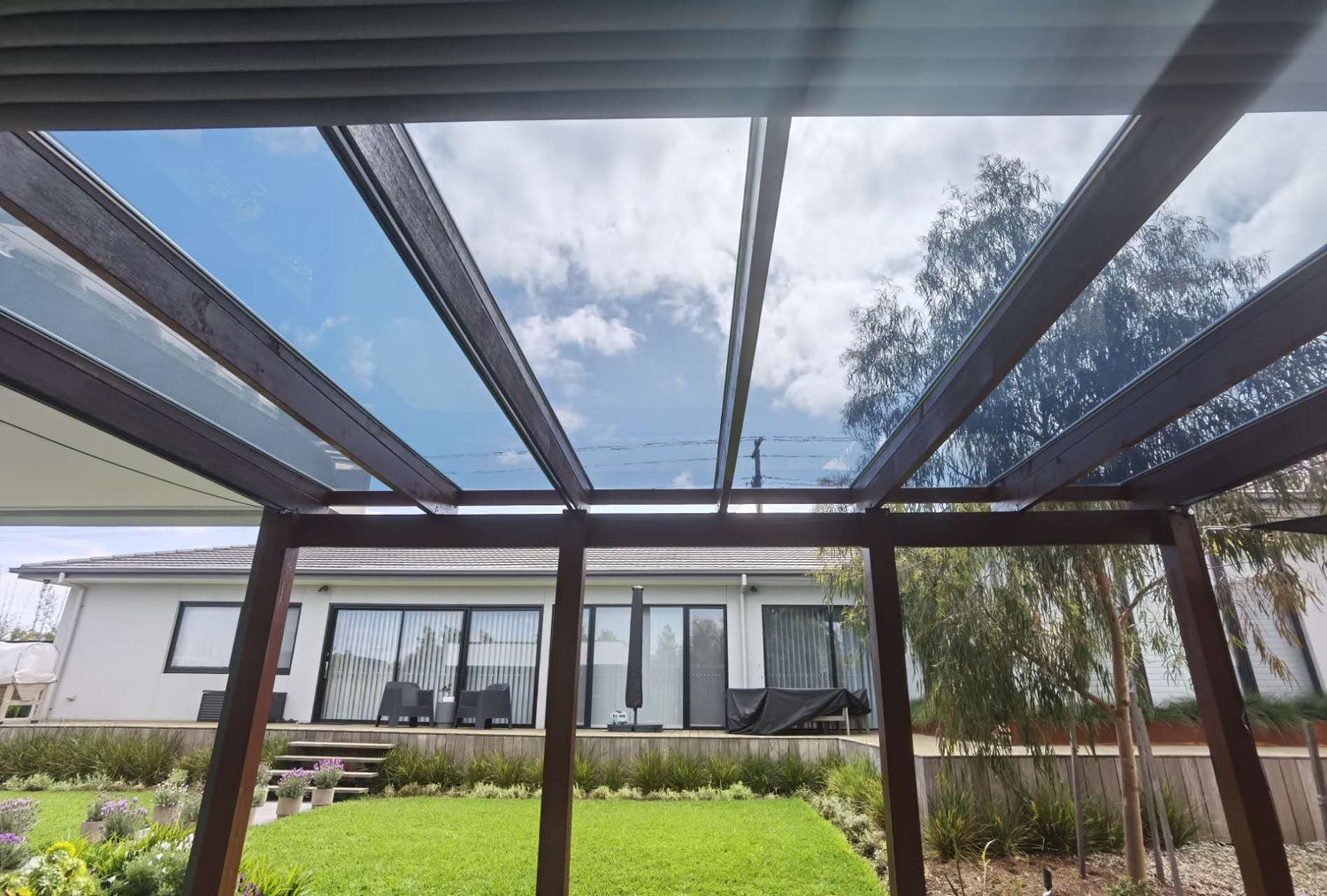

How to Design Your Clear Glass Roof Pergola

A clear glass roof pergola is a beautiful addition to any outdoor space — providing shelter, natural light, and a stylish focal point for your backyard. With several roofing materials and design options available, it helps to understand the key decisions before you start. This guide walks you through everything you need to consider.

Step 1: Determine Size and Rafter Spacing

Start by measuring your outdoor space and deciding how much coverage you need. The rafter or purlin spacing of your structure will determine which roofing sheet profile and span is appropriate. As a general guide:

• The W800 solid polycarbonate locking system suits rafter spacings up to 800mm centre-to-centre.
• Corrugated polycarbonate sheets are flexible and suit a range of spacings.
• Twin wall polycarbonate sheets are rigid and span well between supports.

Contact our team with your measurements and we’ll advise on the right product and span for your structure.

Step 2: Choose Your Roofing Material

There are three main polycarbonate roofing options for pergolas, each with distinct characteristics:

Corrugated Polycarbonate Sheets

Corrugated polycarbonate sheets are the most cost-effective option. They overlap and screw directly onto the frame without additional accessories, making them quick and easy to install. Standard thickness is 0.8mm — lightweight and suitable for simple pergola covers and carports.

Solid Flat Polycarbonate Locking System

The solid polycarbonate locking system uses 4mm flat sheets — five times thicker than corrugated — secured into aluminium joiner channels. The result is a premium glass-like appearance with excellent waterproofing and impact resistance. This is the most popular choice for homeowners who want a high-end finish.

Twin Wall Polycarbonate

Twin wall polycarbonate sheets are rigid, strong, and thermally insulating — ideal for pergolas where heat reduction is a priority. The Excelite multiwall locking system provides a watertight seal with a secure, easy-to-install joinery system.

Step 3: Flat or Curved Roof?

Both flat and curved polycarbonate roofs are popular for pergolas. Curved roofs offer several advantages:

• Better rainwater drainage — no pooling on the roof surface
• A distinctive architectural aesthetic
• Improved airflow and ventilation underneath
• A sense of openness and height

Polycarbonate sheets can be cold-bent on-site to achieve a curved profile, making them well-suited to arched pergola designs.

Step 4: Understand Joinery and Fixing Systems

How sheets are joined affects both waterproofing and appearance. There are three main methods:

1. Overlap and screw — Used for corrugated sheets. Simple, effective, and no additional accessories required.
2. Aluminium H-profile joiners — Used between flat sheets to create a seamless, waterproof connection with built-in expansion allowance. Suitable for solid flat and twin wall sheets.

3. Snap/click locking systems — Integrated into the sheet profile, allowing sheets to lock together without additional accessories. Used in the solid locking system and multiwall locking system.


Step 5: Set Your Budget

Establish your budget before finalising material and design choices. Key cost factors include:

• Roofing sheet type and quantity
• Joinery and accessories (aluminium joiners, end closures, flashing, anti-noise tape)
• Frame condition — whether any repairs or modifications are needed
• Installation — DIY or professional

Step 6: Maintenance

Polycarbonate pergola roofing is low maintenance by design:

• Flat locking system sheets — Rain and wind naturally clear debris. An annual wash with mild soap and a soft cloth is sufficient.
• Corrugated sheets — Slightly more prone to debris accumulation in the corrugations but still straightforward to clean.
• All types — Avoid abrasive cleaners or harsh chemicals that can damage the UV coating.

Professional Installation in Melbourne

ExcelitePlas offers both roofing materials supply and professional pergola installation across Melbourne. Whether you’re building a new pergola or replacing an existing roof, our team can advise on the right product and handle the full installation.

Browse our aluminium pergola kits and solid polycarbonate locking roofing system, or contact us for a free quote. Call 0452 396 680.
